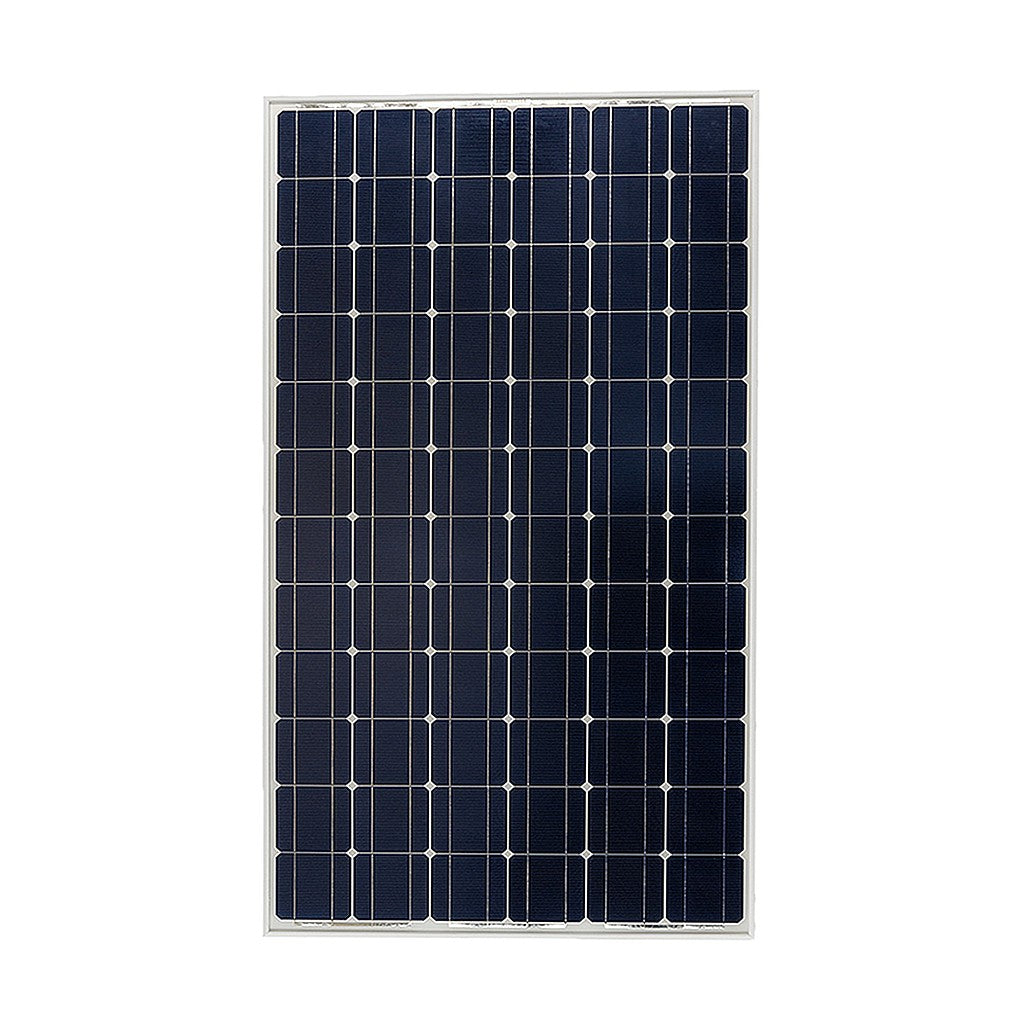

Solar Panel 305W-20V Mono 1658X1002x35mm Series 4B Discount Big Discount

1658x1002x35MM • SERIES 4B • MONOCRYSTALLINE WITH SILVER FRAME • 5 YEAR WARRANTY

Victron solar panels are made using high quality Polycrystalline and Monocrystalline cells. Victron provide a full range of solar panel modules ranging from 20W – 360W. They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravans, camping, marine or any other systems with a 12V battery or battery bank.

Solar panels can be utilised to extend battery run time when powering multiple accessories. A number of factors that can influence this include: the time of year, weather conditions, battery capacity and how long you run your appliances. It’s important to over size your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping.

<td

Model

<td

SPM043052002

<td

Cell type

<td

Monocrystalline

<td

Number of cells in series

<td

60

<td

Nominal power (Watts)

<td

305

<td

Open Circuit Voltage (Volts)

<td

39.7

<td

Maximum Power Voltage (Volts)

<td

32.5

<td

Short Circuit Current (Amps)

<td

10.27

<td

Maximum Power Current (Amps)

<td

9.38

<td

Power (Max.)

<td

305W

<td

Temp Range

<td

-40 to +85°C

<td

Length of cable / connector

<td

900mm / MC4

<td

Power Tolerance

<td

±3%

<td

Maximum system voltage

<td

1000V

<td

Size (LxWxH)

<td

1658 x 1002 x 35mm

<td

Weight

<td

18kg

<td

Warranty
–Electrical performance

–Product warranty

<td

10 years 90% +25 years 80% of power output

5 Year product Warranty
